Portable Shared Storage for Creatives

Experience the full power of creative.space with a system that you can own!

Available capacities

Usable Capacity

Some capacity is lost in order to protect your data from drive failures.

RAID 0

48 TB

RAID 5

34 TB

RAID 6

22 TB

RAID 10

23 TB

practical Capacity

Performance slows down as you reach the outside of drives, we recommend not filling past 80%

RAID 0

38 TB

RAID 5

27 TB

RAID 6

18 TB

RAID 10

19 TB

Usable Capacity

Some capacity is lost in order to protect your data from drive failures.

RAID 0

64 TB

RAID 5

45 TB

RAID 6

30 TB

RAID 10

31 TB

practical Capacity

Performance slows down as you reach the outside of drives, we recommend not filling past 80%

RAID 0

51 TB

RAID 5

36 TB

RAID 6

24 TB

RAID 10

25 TB

Apply for Financing

*Financing available based on approved credit

Features

Connections

Direct connect up to 4 users via ethernet or more with a switch

2x 10 GbE
2x 1 GbE

Performance

Saturate every connection

900+ MB/S
via 10 GbE

Capacity

Fill all 4 bays with 10, 12, or 16 TB helium-filled HDDs

40-64 TB
RAW

Support

Proactive support based on monitoring with pre-built alarms

1 Year Included

software

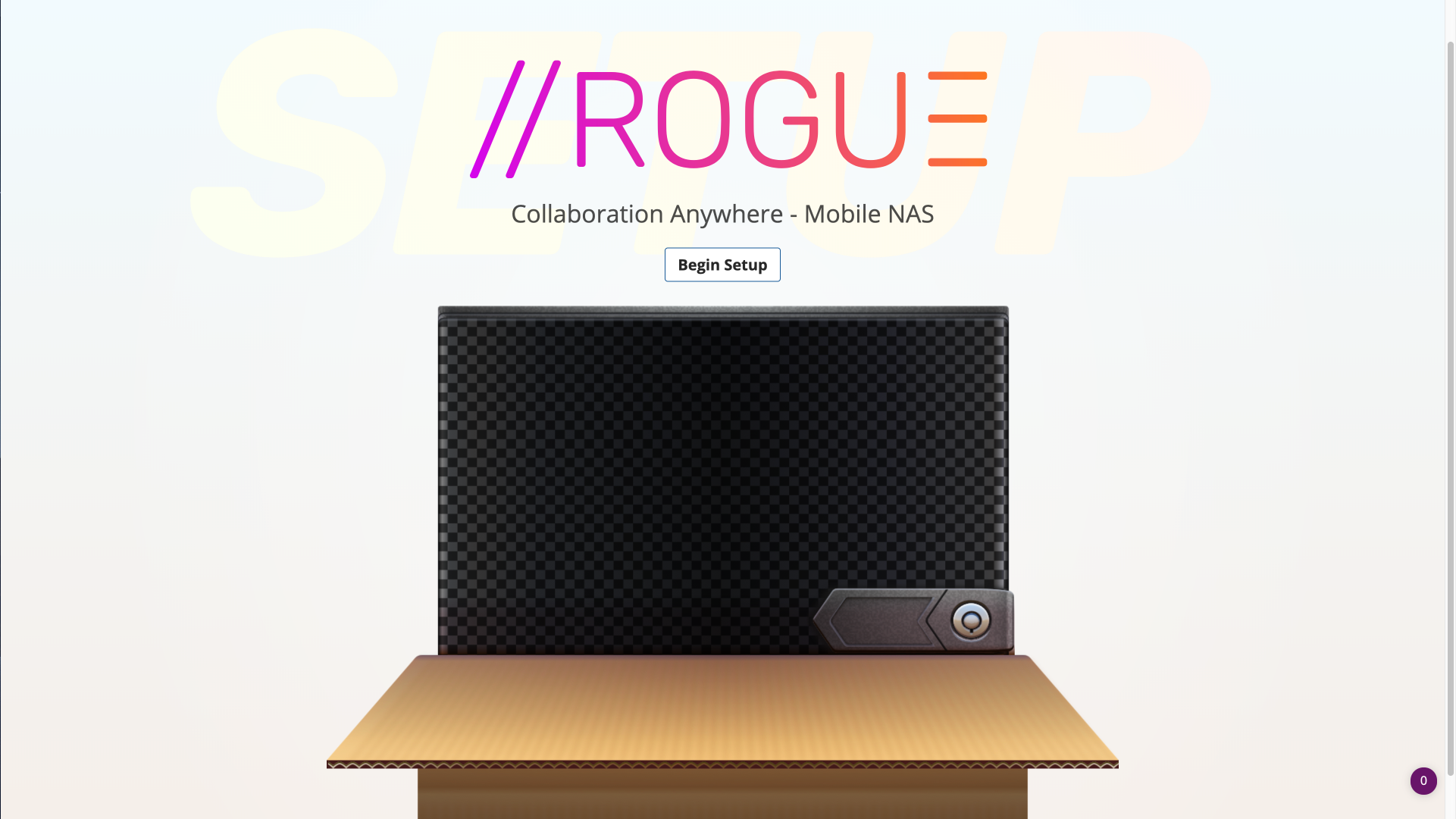

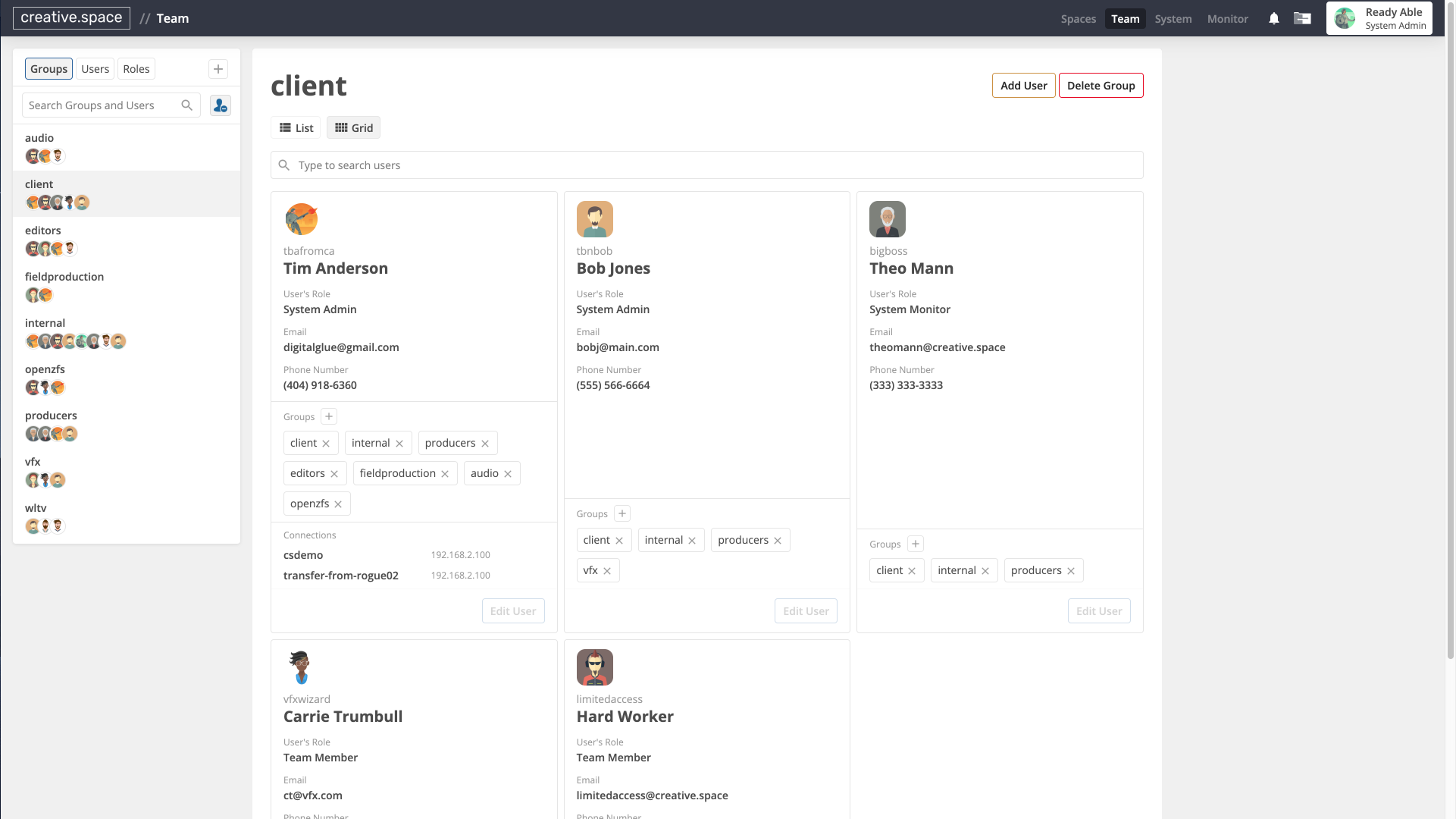

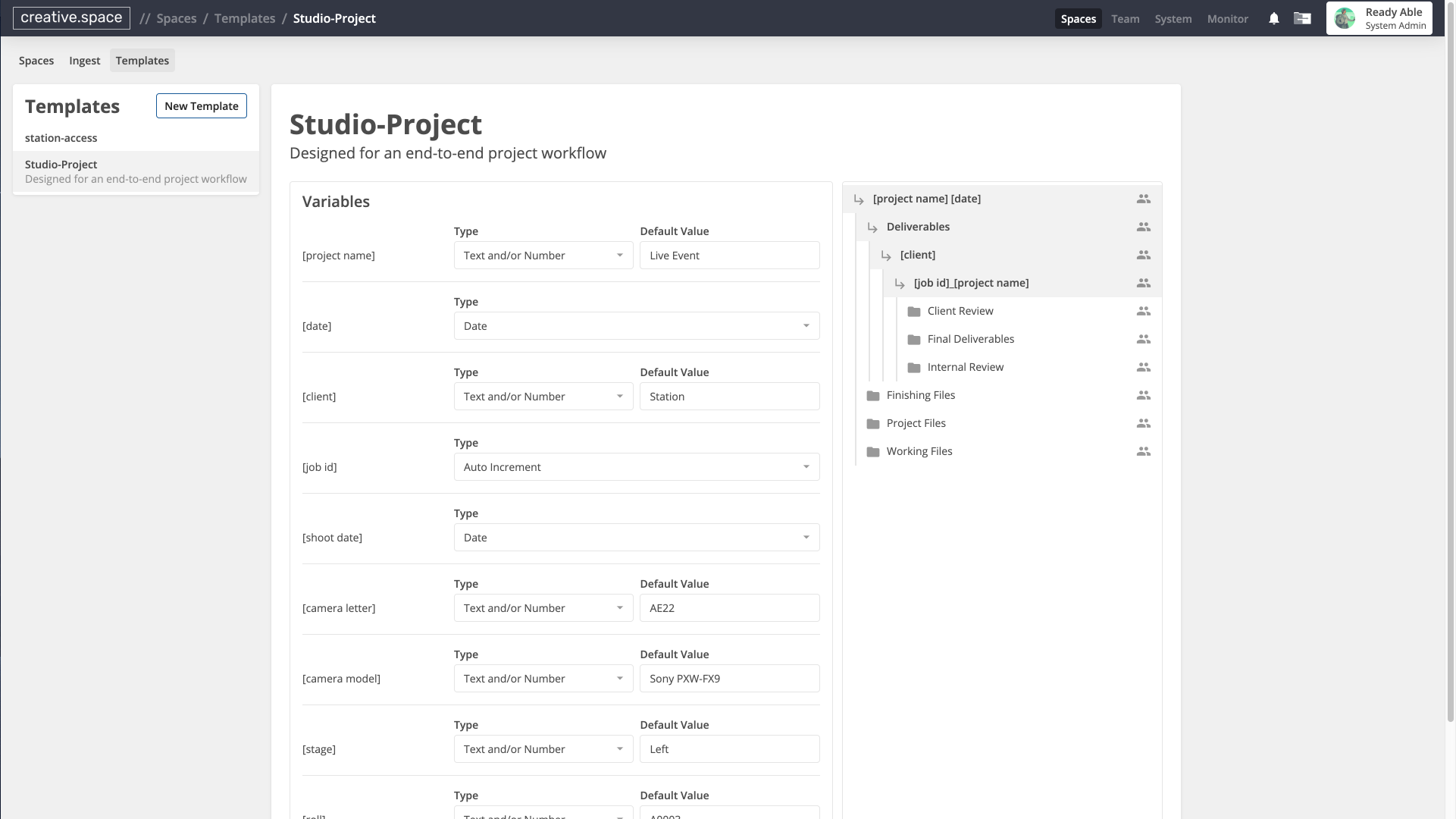

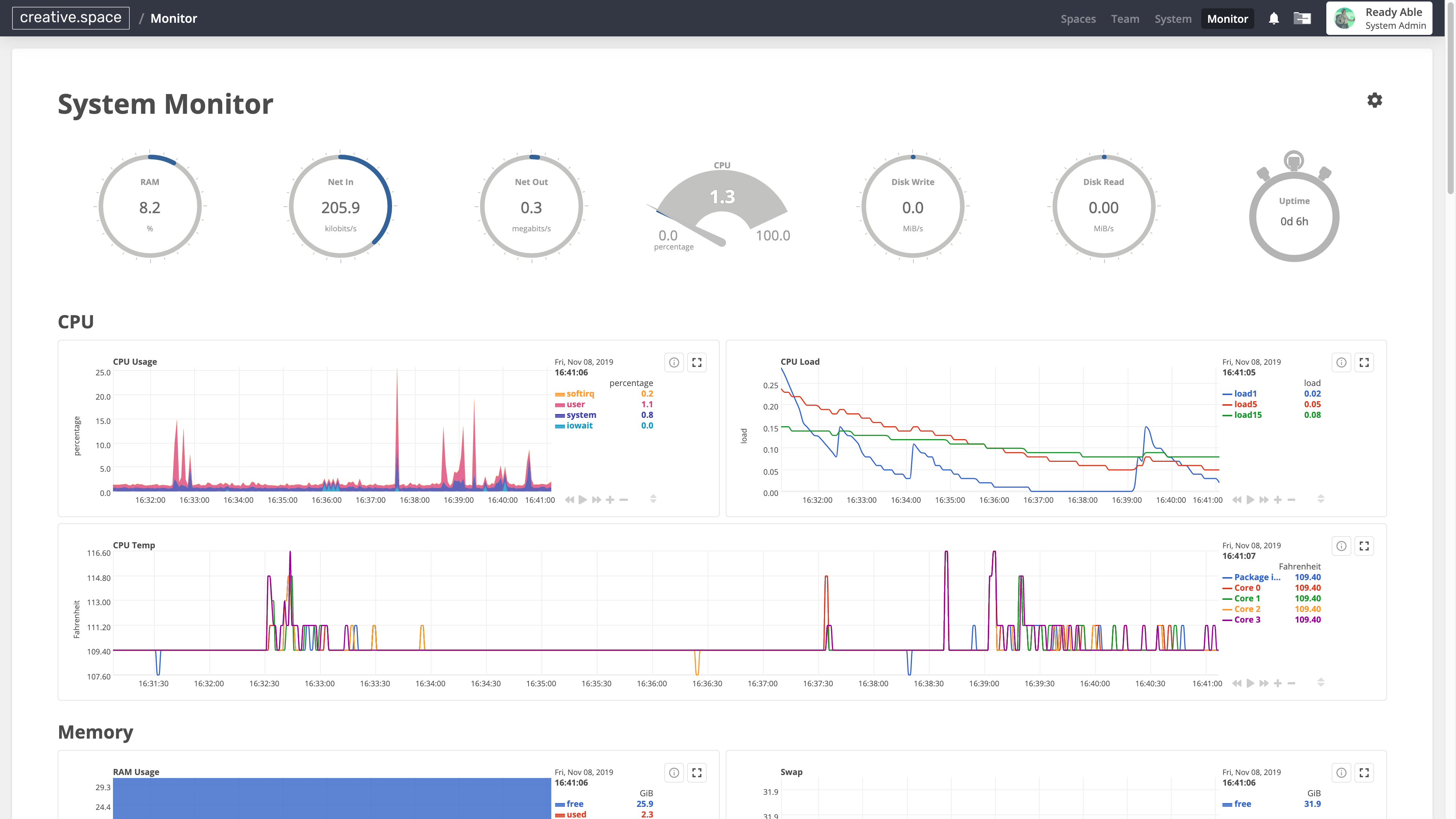

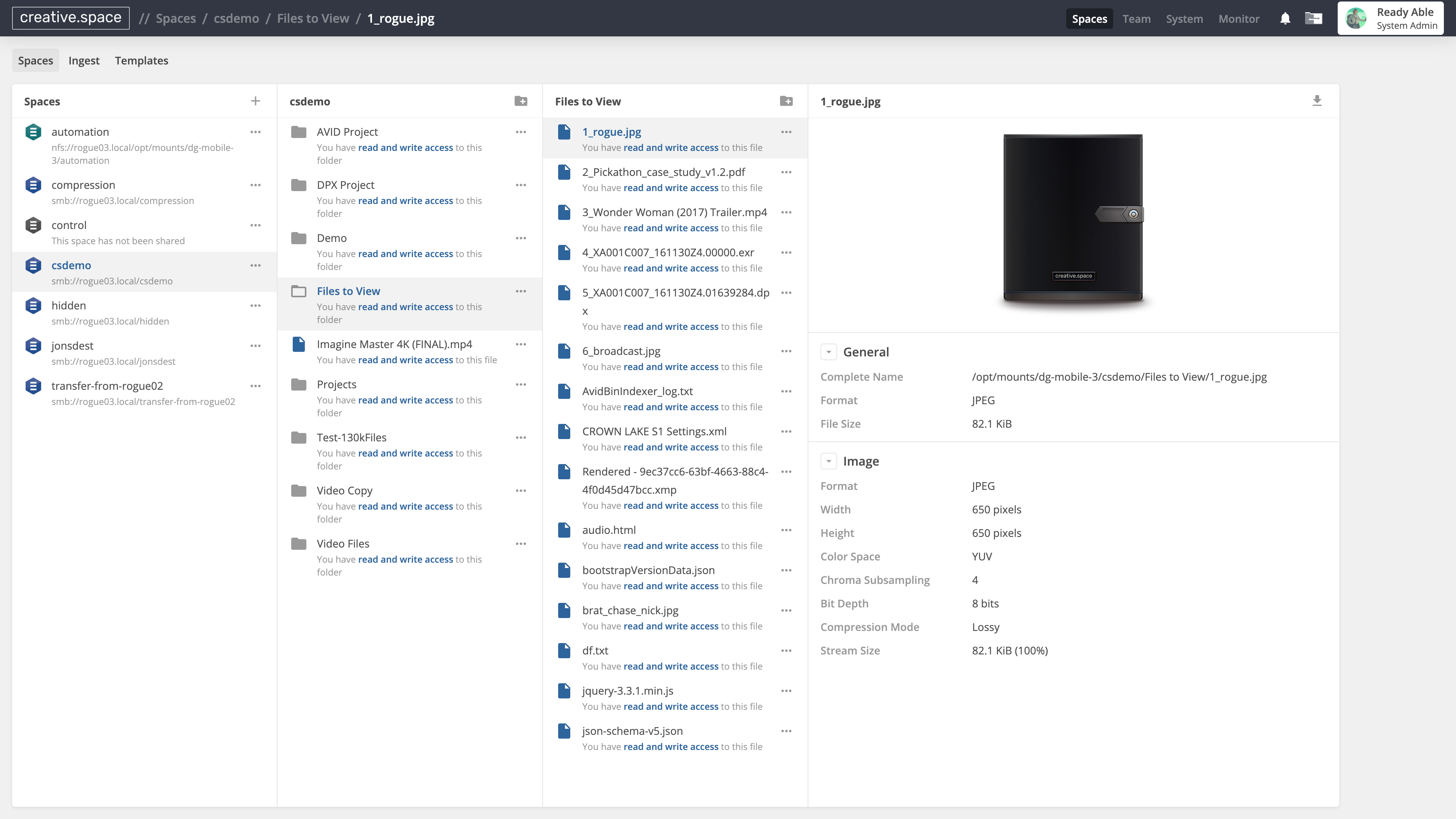

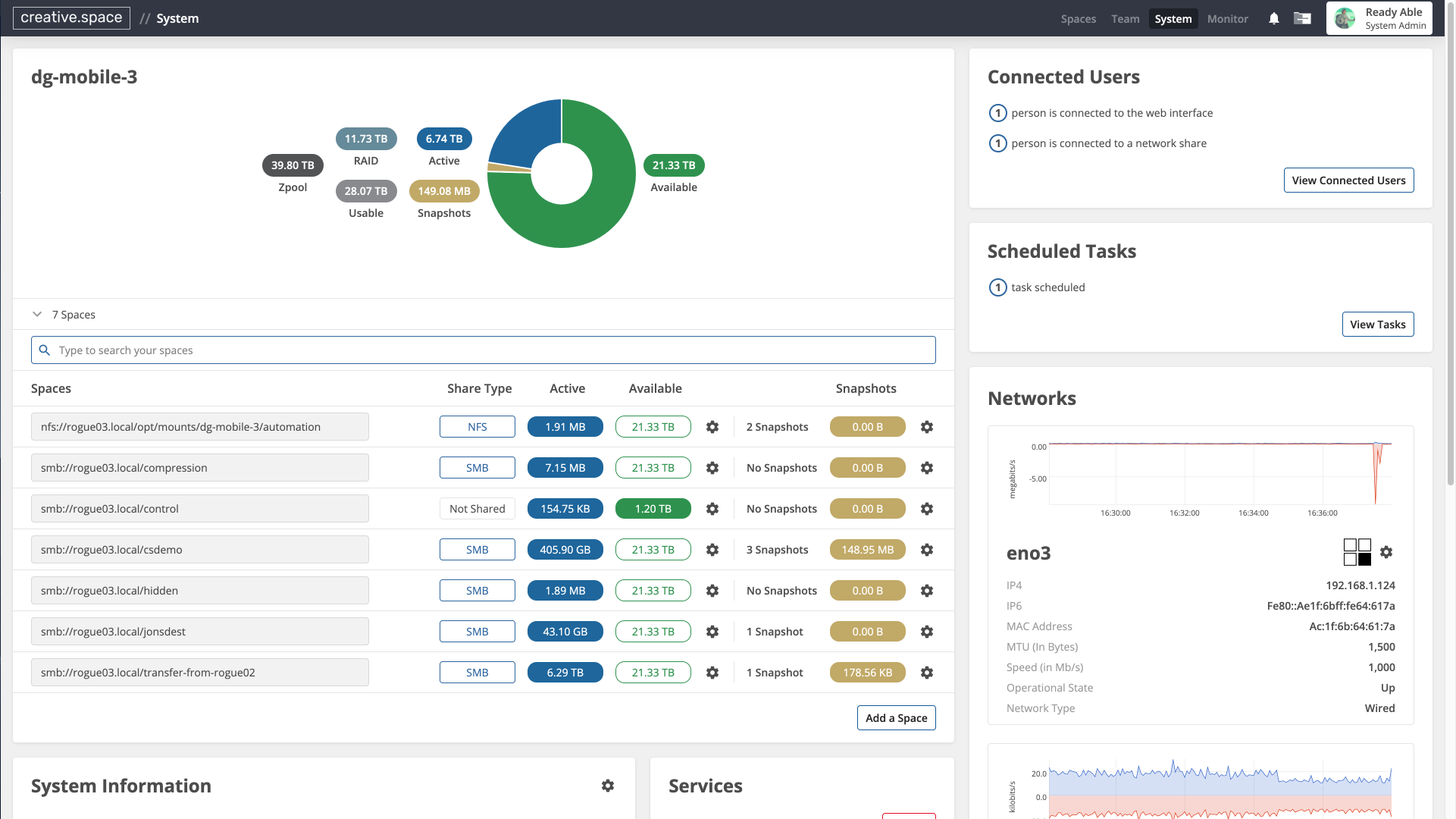

Screenshots

Enterprise Software Designed for Creatives

Full Specs

Hardware

Dimensions (W X D X H)

mm: 240 x 210 x 279
inches: 9.45 x 8.27 x 11
(includes chassis ears)

processor

Intel® Xeon® processor C

Memory

32-64 GB DDR4 RAM

drive bays

4x 3.5” hot-swap drive bays
2x 2.5” internal drive bays

expansion slots

1 x PCIe 3.0 x16
1x Mini-PCIe with mSATA support

Network Controllers

Intel® i217 + Intel® i210AT
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
RJ45 output

connectivity

direct connections

2x 10 GbE
2x 1 GbE
1-2x 1/10/25 GbE via Expansion

performance

10 GbE: 650 MB/s - 1 GB/s
1 GbE: 100 MB/s

connections with switch

Up to 20 via 2x 10 GbE

Protocol support

SMB and NFS

connector type

RJ45 [CAT5/6/6a/7 Cables]

additional server access

IPMI
USB 2.0 and 3.0
VGA

Thunderbolt connectivity

With 3rd party Ethernet to Thunderbolt adapter

storage

form factor

Desktop

file system

128-bit OpenZFS

drive options

10 TB, 12 TB, or 16 TB
Helium-filled SATA HDDs

total raw capacity

48 TB, or 64 TB

usable after raid

RAID 0: 48 TB or 64 TB
RAID 5: 34 TB or 45 TB
RAID 6: 22 TB or 30 TB
RAID 10: 23 TB or 31 TB

support

support plan

1 year included

NLE Support

Included out of the box for: Adobe Premiere, DaVinci Resolve, FCPX, and most other post apps
Avid Media Composer requires MIMIQ (3rd party per-NIC license)

Frequently Asked Questions

can I buy this system?

Yes. The //ROGUE is the only unit that we sell.

What kind of support is included?

We are including a full year of support free with each //ROGUE system, which includes proactive support (via alarms), 9-5 weekday phone support, e-mail, and advanced parts replacements.

We are still in our Early Adopter phase and still assessing how much support will be required for these systems. Beginning in 2021, we will announce the renewal rate.

is the creative.space software included?

Yes. All of the software we install on our O.P.M.S. systems is included with the //ROGUE. During the included year of support, we will also provide updates to both front-end and back-end software.

We consider our //ROGUE customers as equal members of our Early Adopter community and look forward to your input into our software development process.

What happens if I don't renew the support?

No problem. You keep your system as is. We just won't keep proactively monitoring your system.

If you want reactive support or updates in the future, you can get phone support for $150/hr. On-site visits are $1500/day plus travel costs.

If you need replacement drives, just let us know.

can I connect and offload files off of USB devices?

Yes! We auto-mount USB devices that are connected to the //ROGUE and present them under the Ingest tab on the Spaces page of the web app. From there, you can use the compare and copy tool to ingest files to your spaces.

Two scenarios this functionality can be helpful for...

1. Offloading Camera Media: You can connect a card reader for your camera media and offload directly into the //ROGUE. You don't have to worry about reformatting the card. Keep shooting and use the built-in conflict resolution options to bring in only the new files.

2. Syncing Editor Drives: Connect the drives to the //ROGUE and copy the project folder to them. The editors can go work on their drives, updating their project files and adding additional assets as needed. When you need to update your //ROGUE with each editor's new work, just point the Copy and Sync tool to the project folders on each device and use the conflict resolution options to push, pull, or sync them. No more manual investigation to see what's new.

how is the storage backed up?

The //ROGUE is designed as an online storage appliance. It is recommended that you always backup your valuable data to a secondary storage tier to prevent loss.

We provide RAID options, which protect against data loss in varying drive failure scenarios.

Another feature that can protect you from data loss is Snapshots. When you take a Snapshot of one of your Spaces, a read-only copy of it is instantly created that doesn't take up any additional space. The Snapshot grows in size as you orphan files and/or blocks in the Space through deletion or revision.

Can remote editors connect to my spaces?

Yes, but with a few caveats. The //ROGUE is an enterprise shared storage system that is accessible over whatever networking you set up for it. While you can provide access via a public IP address, we recommend setting up a Virtual Private Network (VPN). The main caveat is that speed will be limited to your internet connectivity.

Will it work with X Application?

Any application that can access SMB or NFS mounts should work out of the box. We have tested and optimized for Adobe Premiere and After Effects, DaVinci Resolve, Apple Final Cut Pro X, Avid Media Composer and more.

The only caveat is that Avid Media Composer requires you to use the Ultimate version for Bin Locking and MIMIQ, an additional per-seat 3rd party license, to unlock SMB support. Licenses for MIMIQ are available for $250 a seat with volume discounts available.
